Pocket Loom Weaving Kit 4"x4" 8-dent STL Bundle

Take your weaving on the go or use this pocket-size loom to make swatches and samples for large projects. This convenient, travel-friendly loom kit can make pieces up to 4" x 4" (10cm x 10cm) and comes with several accessories to streamline your weaving experience.

The frame of the loom has diagonal cross bracing to limit how much the loom deforms while warped and under tension. Raised beams next to each set of warp notches help even out the warp and give you just a little more room to work. A pair of V-shaped notches on either side of the loom grab on to each end of your warp yarn and keep it secure while you're working.

The included rigid heddle roller is set up for basic plain weave, and it's simple to change the shed by rocking the roller toward and away from you as you weave. Small bumps built into the loom frame keep the heddle roller securely in position on either end of the warp. The ends of the heddle roller have small handles to make it easy to grip while changing the shed, and the roller itself is labeled with the dent size so you know which roller goes with which loom frame. You can also weave without using the heddle roller, for example if you want to do twill or other patterns.

To pack down each row of weaving, use the matching comb, also labeled with its dent size. The large, sturdy handle makes the comb easy to grip, push, and pull as needed.

The loom kit also comes with a long needle that has a large eye and a blunt tip, just the right size to thread your weft yarn through the warp. It's slightly flexible to help you get your overs and unders in the right order. It also has a shallow line etched into it to use as a guide when placing your warp yarn before packing it down with the comb.

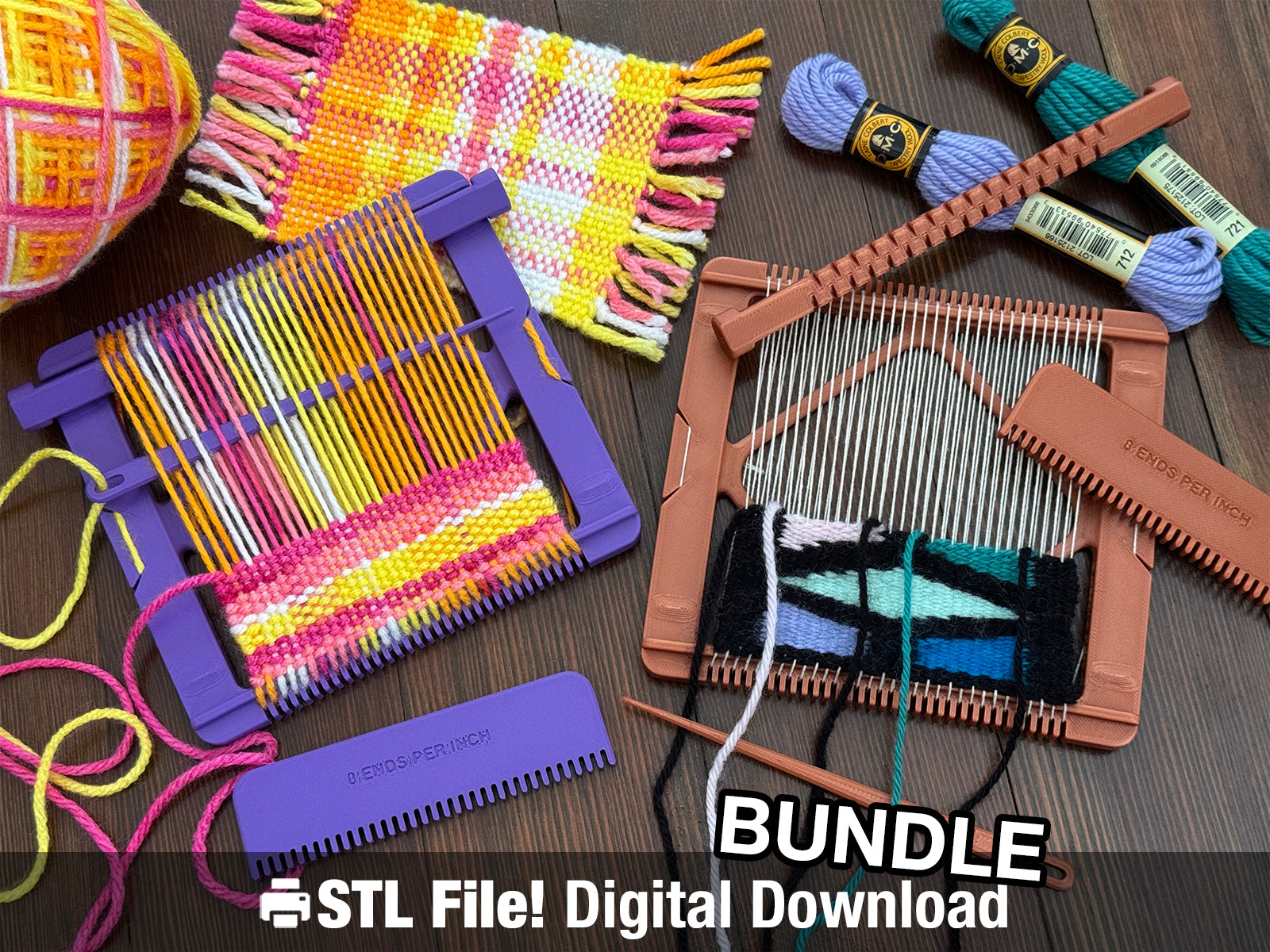

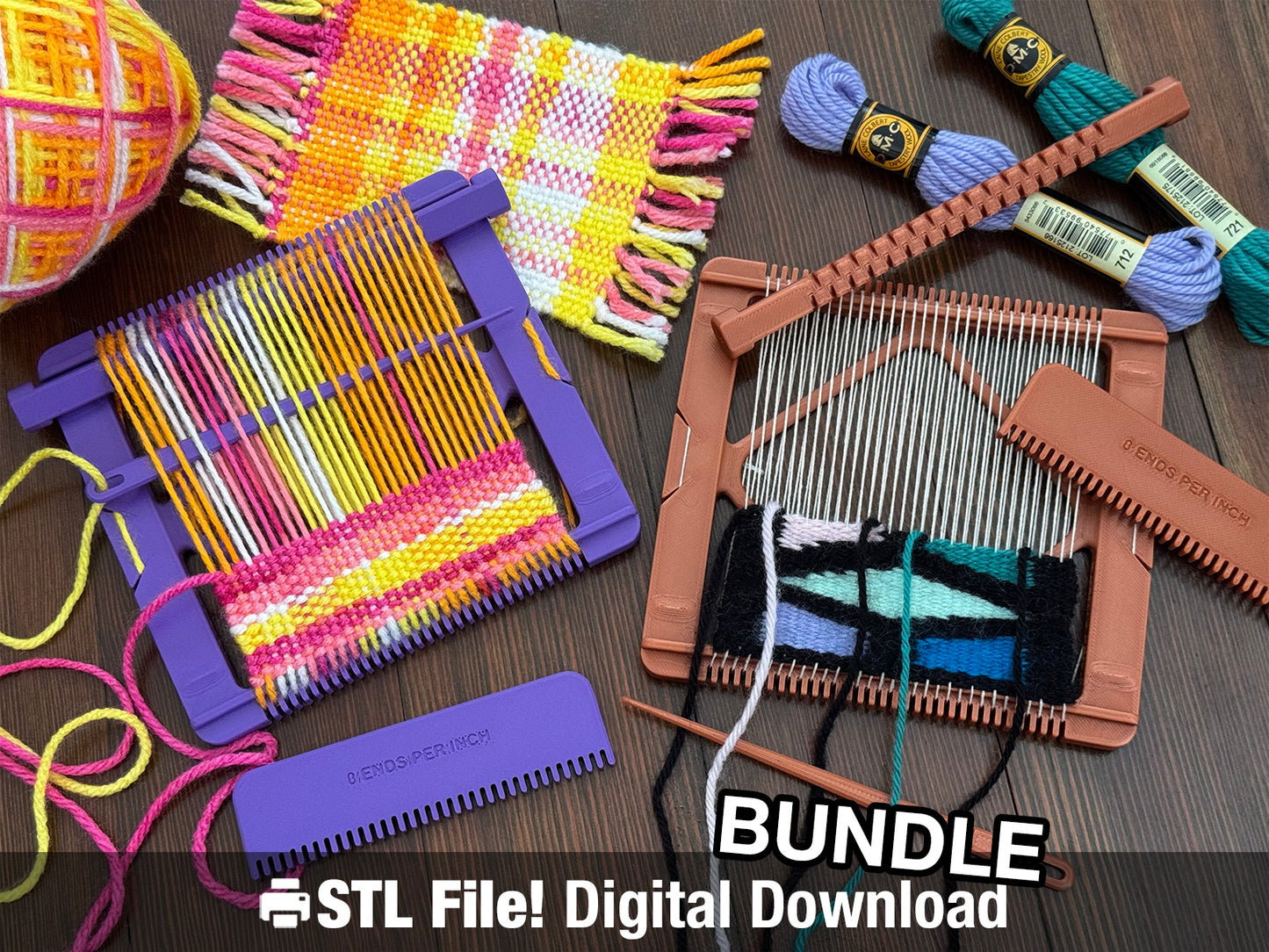

The heaviest yarn that I'd recommend using as warp is a 4-Medium or Worsted/Aran weight. Any heavier than that and you may have trouble getting the needle through the shed. The samples in the product photo were done in Big Twist Value acrylic worsted yarn for the bright warm colors for both the warp and weft, and for the copper loom I used crochet cotton for the warp and DMC tapestry wool for the weft.

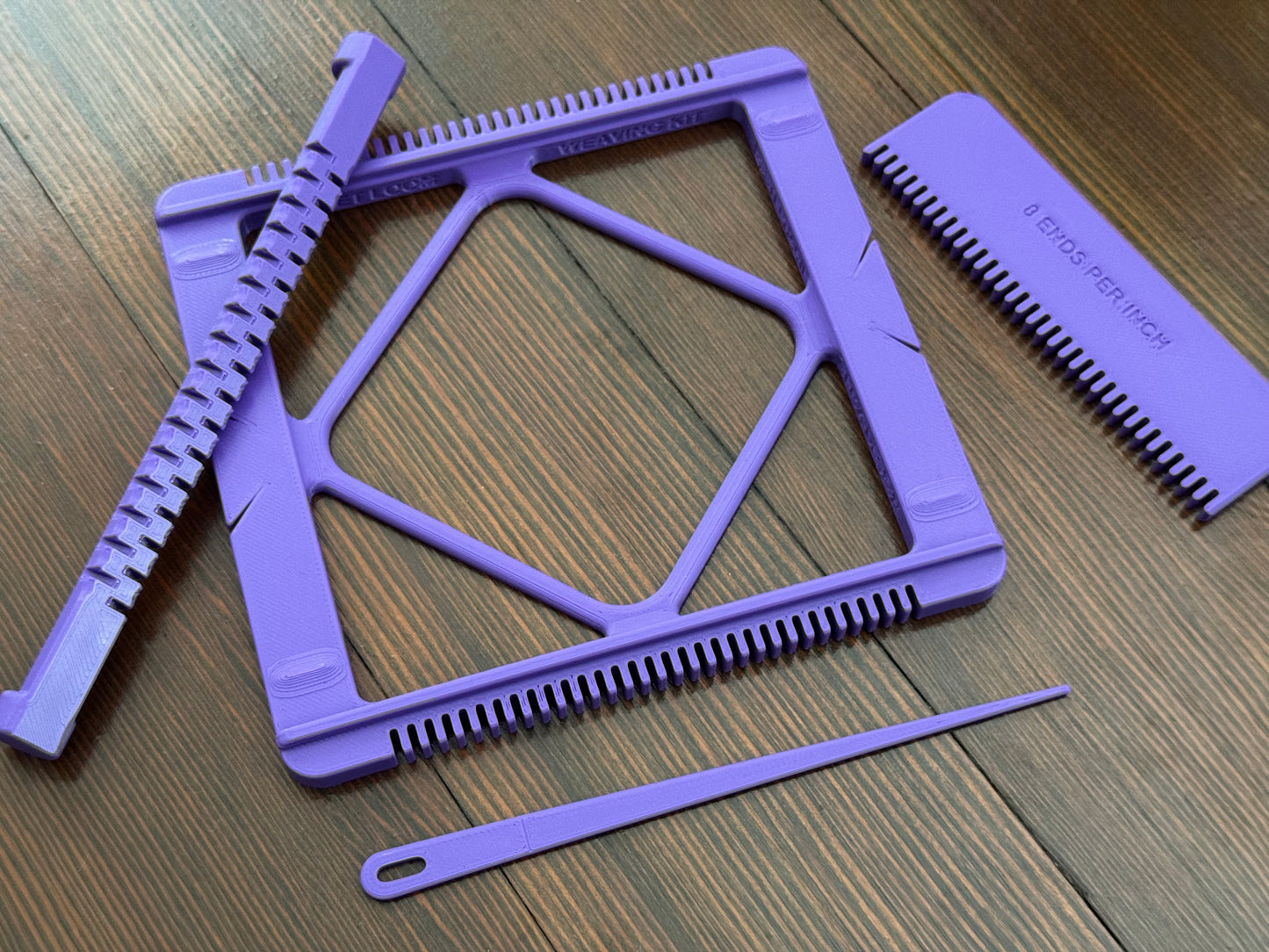

Kit includes loom frame, needle, heddle rocker, and comb. Yarn, thread, and other fiber not included.

If you'd like a different size or a different dent, please let me know! I'm happy to customize any of my looms to suit your needs. Please note that due to material properties of the plastic I use in 3D printing, there's a limit to how many dents per inch I can make before the plastic gets too thin and starts to fail.

--

If you like my work and want to support me, please check out my online store or become a patron. Thank you!

--

Don't want to print your own Pocket Loom and would rather buy a pre-made version? I have the pre-made loom available here.

--

Licensed for personal use only. Commercial licenses available here. Please do not redistribute this file or any modified derivatives of this file in any way, or sell your own prints made from this file. Thank you.
