Electric Eel Wheel 6 Battery & Tripod Base STL File

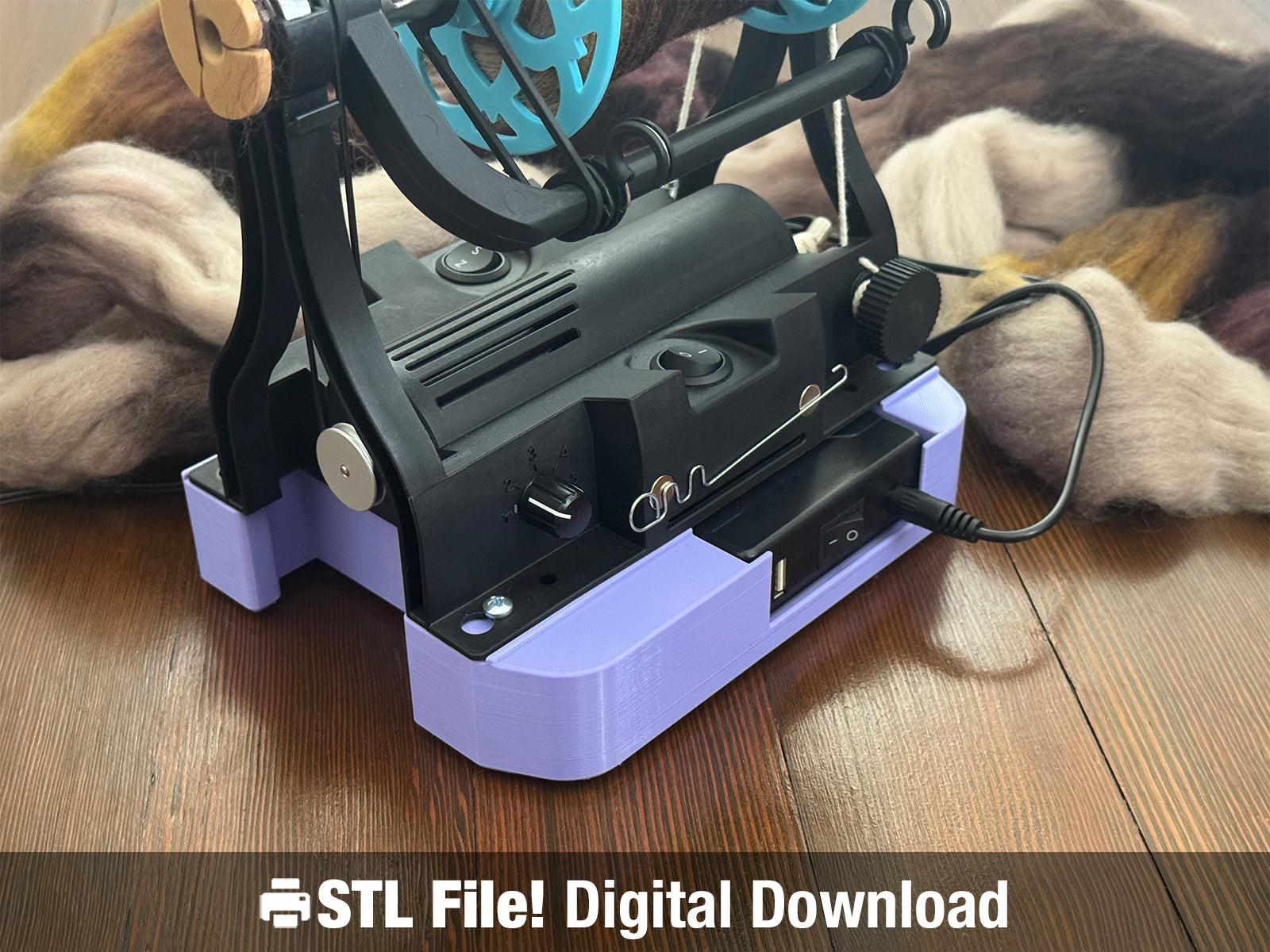

Take your e-spinner setup to the next level with this custom-designed base for the EEW 6.x. Designed for both portability and functionality, this base combines several key features and usability improvements over the standard base that comes with the e-spinner.

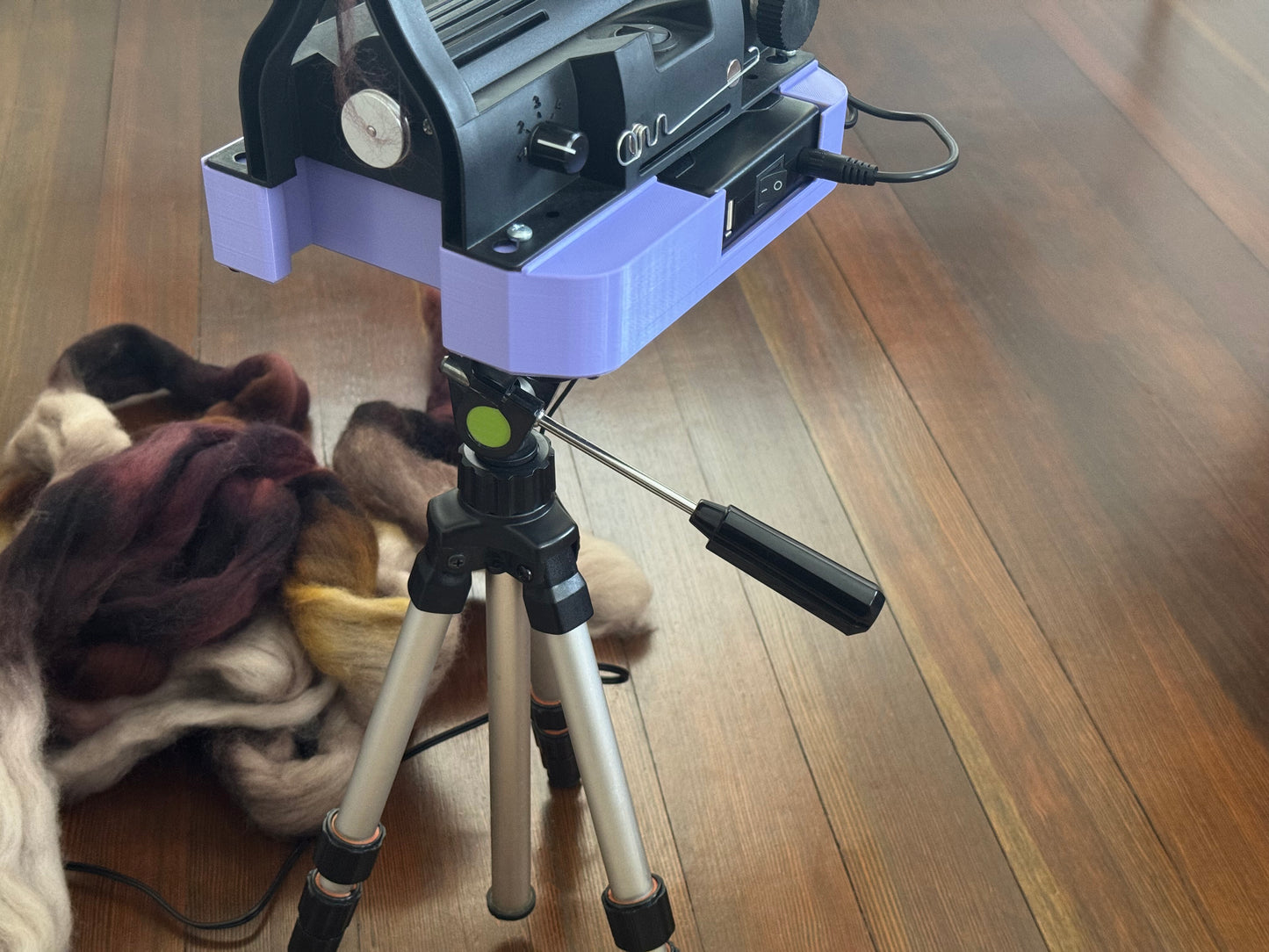

Tripod mount

The secure tripod mount built right into the base allows you to attach your EEW to any standard camera tripod for a stable, ergonomic, and adjustable spinning experience. No more worrying about whether you'll have a table available at the right height, having to tote around your own folding table, or carrying your e-spinner in a heavy, rigid case to use as a spinning platform.

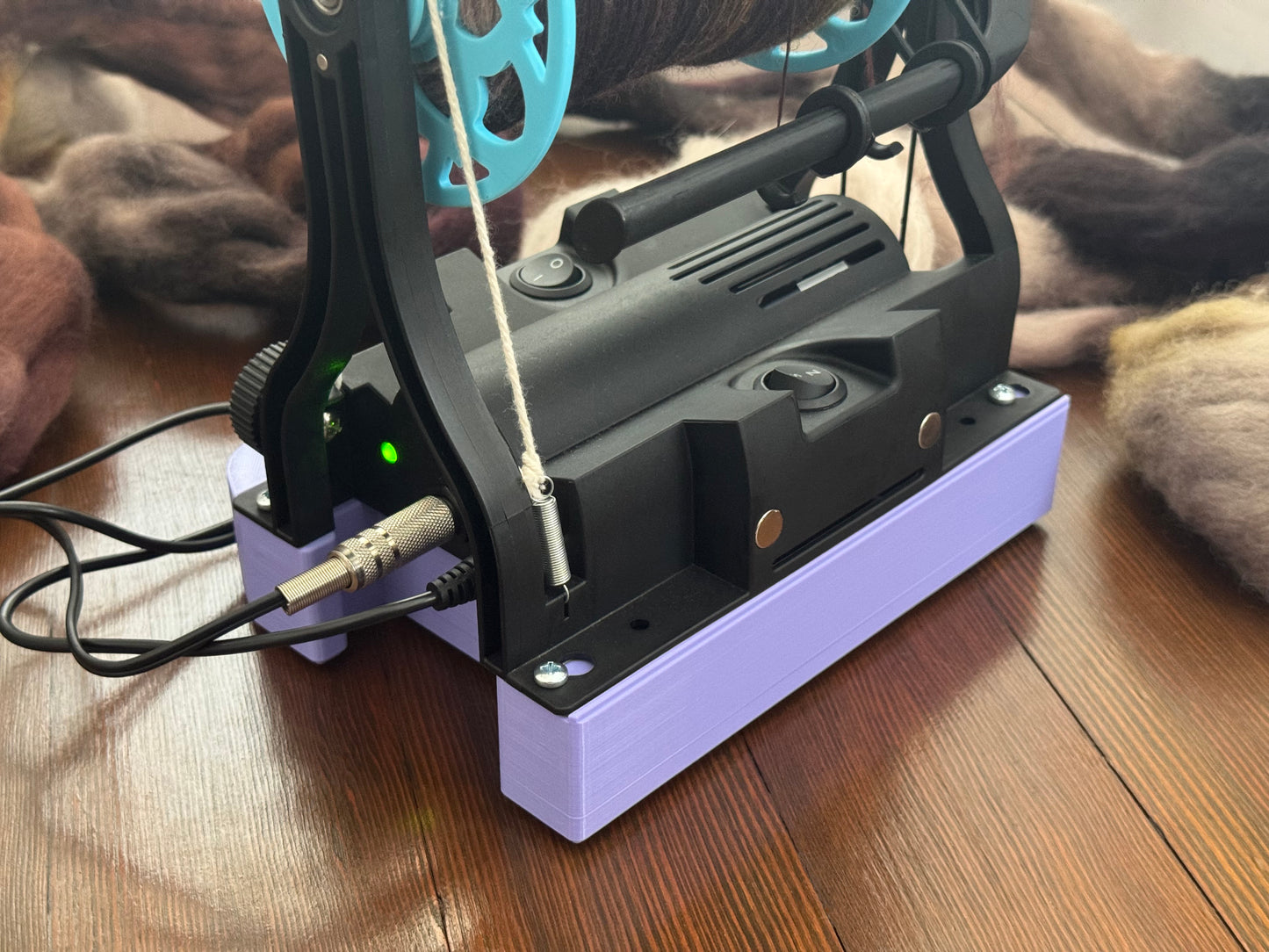

Battery placement

The battery itself is turned to the right relative to its usual placement, making the charge status indicator lights visible without having to look around to the back of the e-spinner. This also makes the power switch on the battery more accessible and easy to find. Once you get the power cable and foot switch set up, it's just spin and spin and spin. Please note that the battery cubby is sized for the TalentCell 12V 3000mAh and I can't guarantee other models of battery will fit. If you want a base for a different size battery, please contact me.

Small parts storage

A small cubby next to the battery is the perfect size for spare parts, spare orifice hooks, orifice reducers, and any other small accessory you want to carry with your EEW.

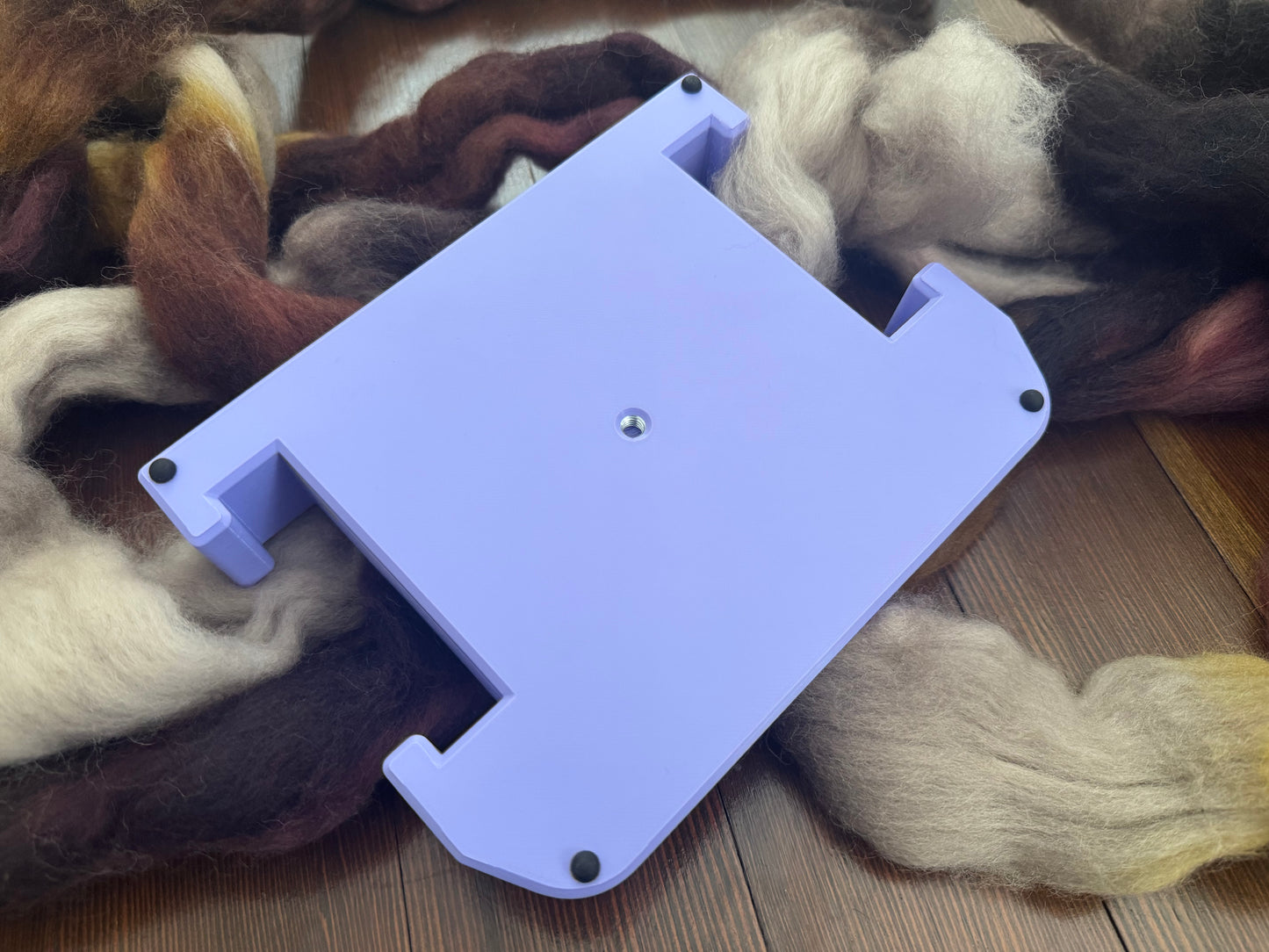

Anti-slip feet

Anti-slip nubs on all four corners of the bottom surface help your e-spinner stay put when placed on a flat surface.

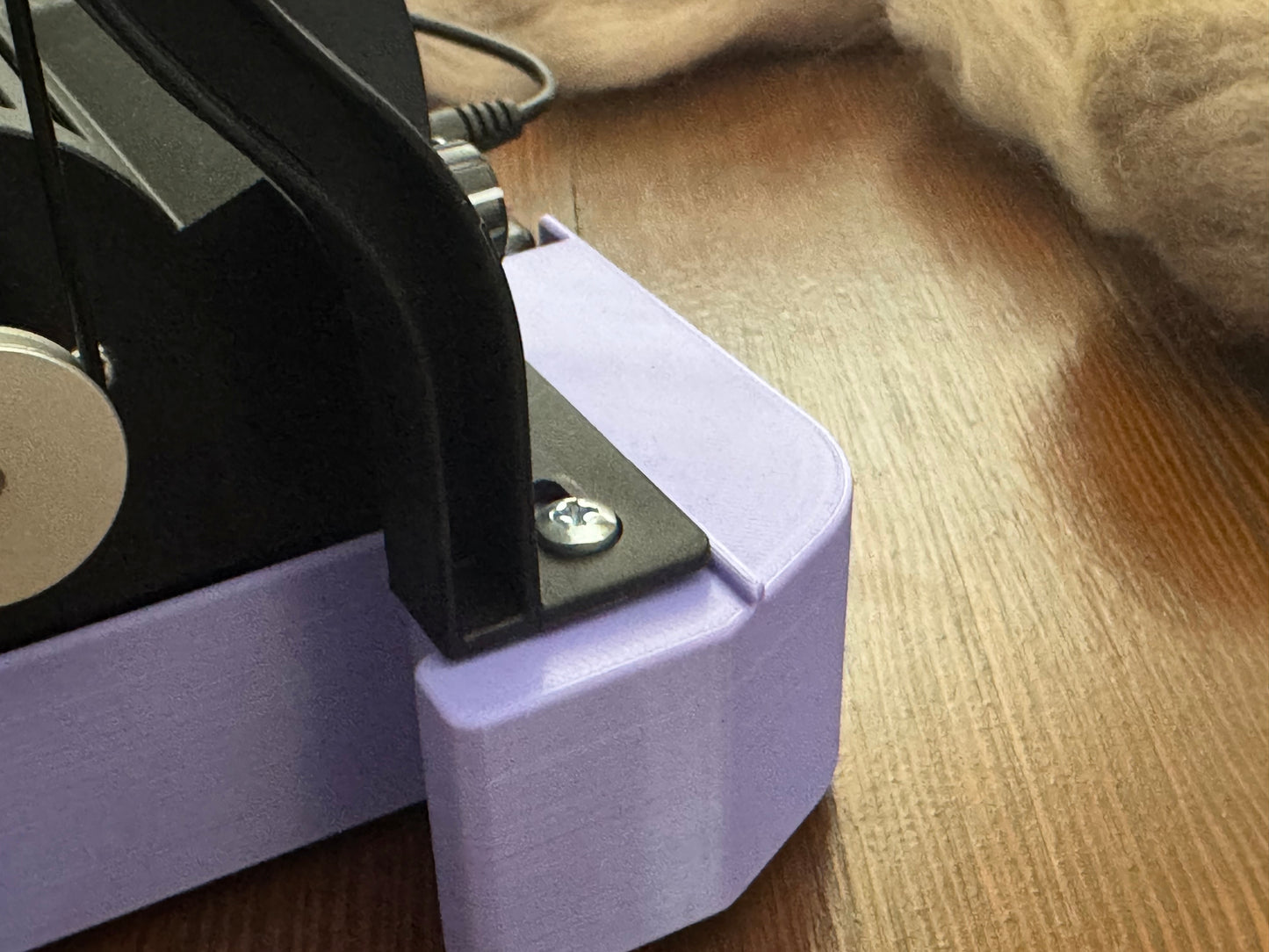

Adjustable mounting bolts

The mounting bolts thread into embedded nylon-lined lock nuts for a secure and consistent grip on the base of the EEW. This provides a fully customizable fit, whether you prefer the base to slide on and off easily or want it to stay on no matter what. Unlike the original screws that thread into the plastic base included with the EEW, these bolts won't loosen on their own and the threads won't lose their grip on the plastic over time. Simply use a Phillips-head screwdriver to adjust the bolts.

Easy alignment ridges

Small ridges on either side of the base help you align the e-spinner with the mounting bolts, and also help keep it securely in place while in use or traveling.

This will fit the EEW 6.0 and 6.1, and all other e-spinners that use the same base.

Parts List

To make a Battery & Tripod Base with all the same features and options as my pre-made version, you will need:

• 4 - Rubber push-in bumper, 1/8” ID, 3/16” stem height, 1/4" OD
• 1 - 1/4”-20 hex nut
• 4 - Pan head Phillips screw, M4 x 0.7mm thread, 14mm long
• 4 - Nylock nut, M4 x 0.7mm thread, 5mm high

--
