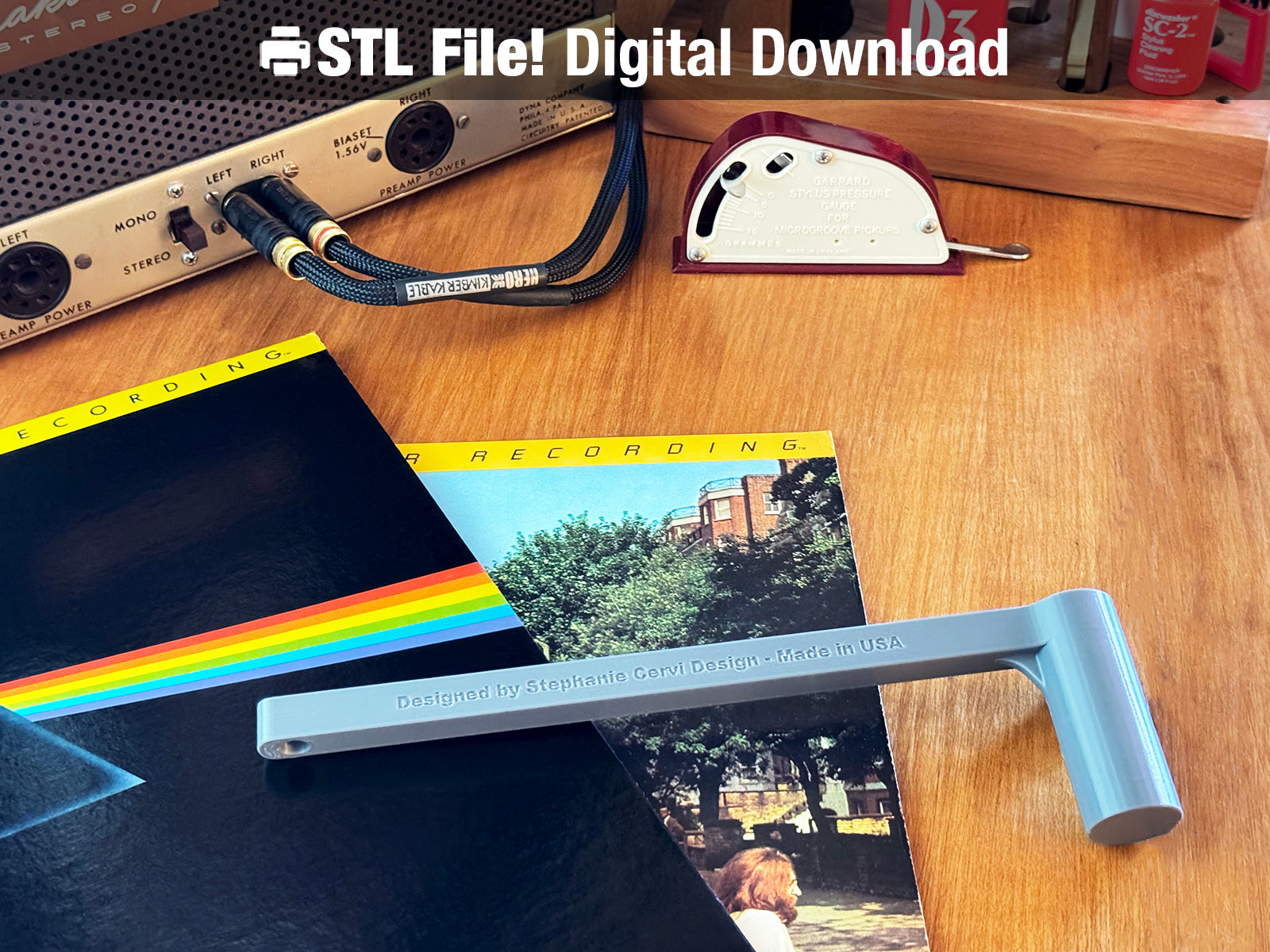

Linn Tonearm Collar Alignment Tool STL File

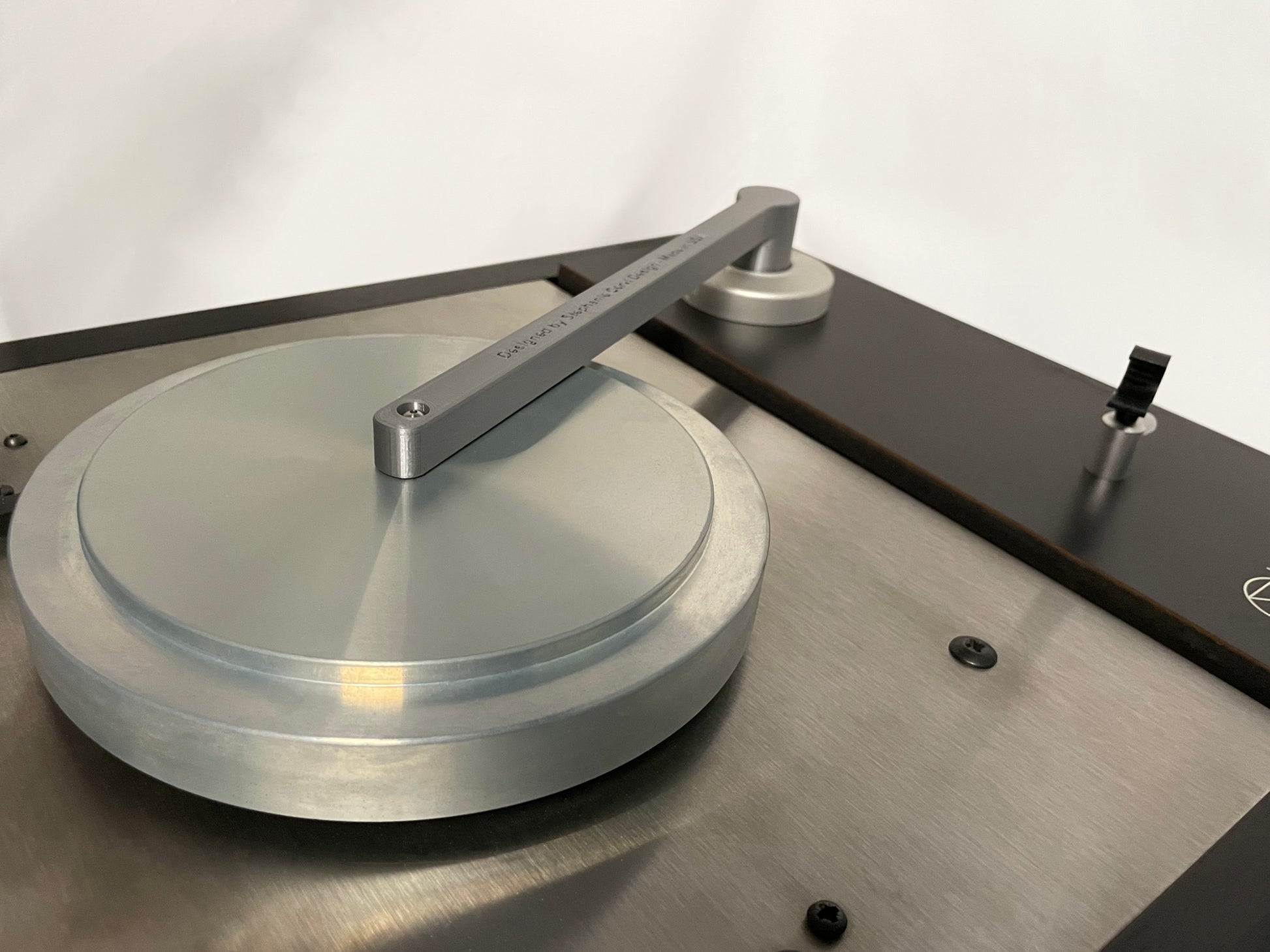

This Linn Tonearm Alignment Tool is designed to the exact manufacturer specifications of the original metal Kinky Arm Alignment Tool. Save money, shipping fees, and time with this version of the essential tool. It’s lightweight, easy to use, and the softer plastic has no risk of scratching your platter or plinth.

Designed to work with Linn Sondek LP12 turntables; I can’t guarantee compatibility with any other models or brands.

Compatible tonearms:

• Any tonearm that uses the Linn collar
• Linn Ekos Super Evolution
• Linn Arko
• Linn Krane
• Linn Ittok
• Linn Basik

Printing recommendations:

• Print with the collar shaft vertical and extending upward, and the arm against the build plate
• Supports not necessary
• Brim of at least 5mm or helper disks on the collar shaft highly recommended; without them, the shaft will likely lift off the build plate and mess up the dimensional accuracy

For usage and instructions, check Page 51 of the Linn LP-12 Setup Manual.

--

If you like my work and want to support me, please check out my online store or become a patron. Thank you!

--

Don't want to print your own Linn Tonearm Alignment Tool and would rather buy a pre-made version? I have the pre-made tools available here.

--

Licensed for personal use only. Commercial licenses available here. Please do not redistribute this file or any modified derivatives of this file in any way, or sell your own prints made from this file. Thank you.
