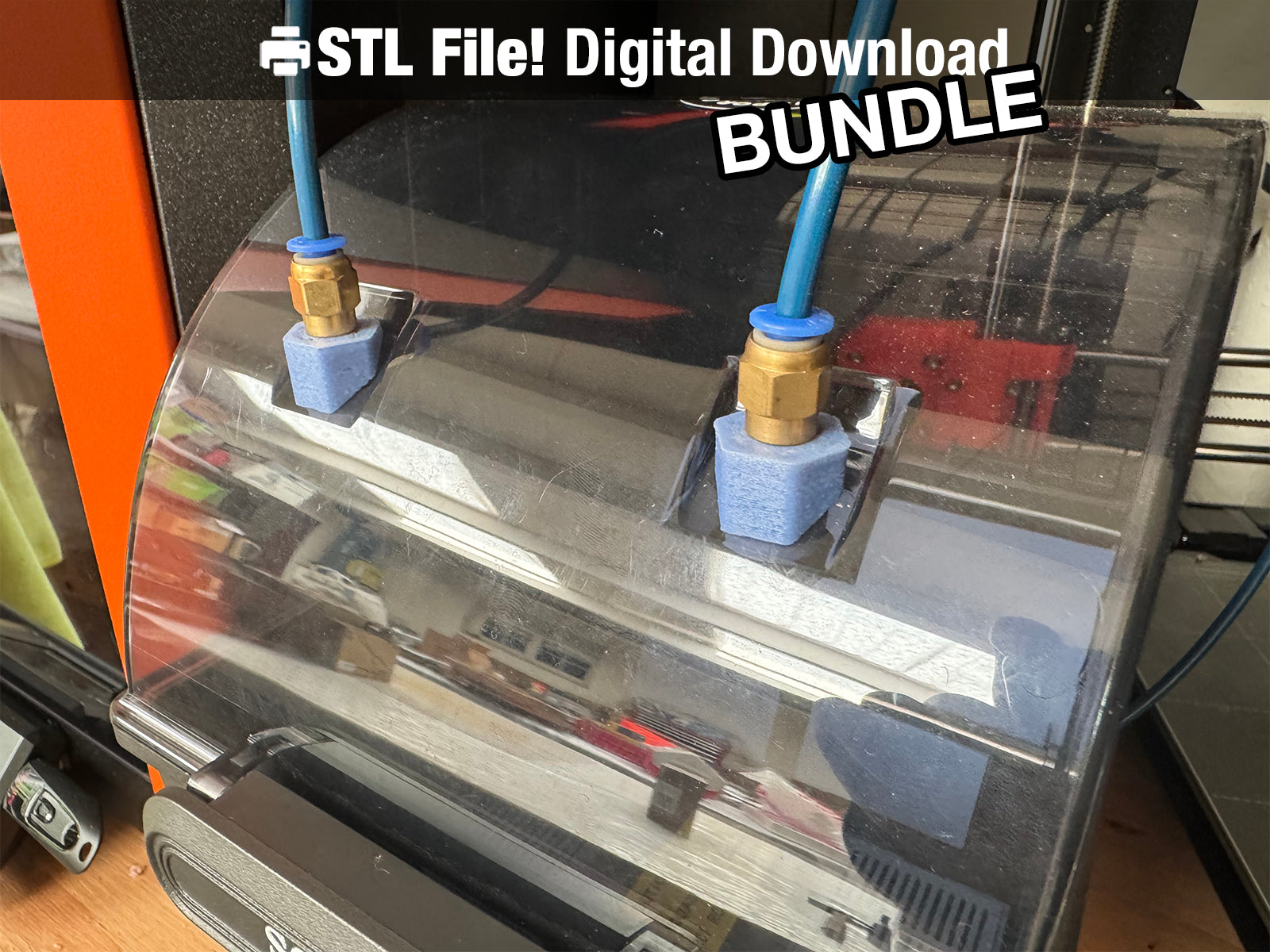

Angled coupling for the Sovol SH02 for M6 Bowden fitting STL bundle

I wanted to use famichu's model but with a Bowden fitting. insa- published their own remix for an M10 fitting, but I don't really like the M10 fittings since it allows the Bowden tube to move through the fitting rather than securely seat.

Since different printers need different tolerancing, I added a .3mf file that includes the upper coupler, the lower spacer, and a negative volume of an M6x1 bolt. If you find you need more tolerancing for the threads, you can either chase it with a tap after printing, or simply scale up the bolt model by a few % in X and Y only. Don't scale in Z otherwise you'll change the thread pitch!

UPDATE 16 July 2025: PETGwithouttheG found that scaling X and Y for the bolt's negative volume to 107% worked but was a little snug. I've added a new .3mf with the scale set to 108%, and confirmed this seems to be the magic number when I reprinted my fittings. I've left the original file there though if you prefer to chase the threads with a tap instead.

UPDATE 21 July 2025: I used MeshMixer to make the main part taller, so that the M6 threads don't conflict with the part's external threads.

--
